Traceability for Resilience and Recovery

C15.1 — Connect the relationships that matter

Useful Traceability starts with a named consequential question. “Which customers may be affected by this dependency?” requires different evidence from “Who authorized this exception?” or “Did the restored service regain integrity for the declared scope?” A record is valuable because it helps answer such a question, not because it increases a count.

The useful relationship set commonly connects intent or obligation to an accountable decision; a Work Order or change set to its source, dependencies, build record, controls, release, and deployment cohort; the cohort to runtime assets and outcomes; and the incident to investigation, containment, restoration, verification, and follow-up. The integrated graph in Figure F15.1 is an author synthesis. No cited standard requires one central database, one schema, or one organizational topology.

Each consequential relationship should carry enough context to be interpreted: direction, time semantics, owner, confidence or coverage, access class, and retention or disposal class. A direct link, a derived link, a federated link, and an unavailable link are different states. Missing or sampled evidence must be visible rather than silently inferred.

W3C Trace Context standardizes interoperable request correlation across components. It does not provide lifecycle provenance, deployment inventory, access control, recovery evidence, or causal explanation. Sampling can fragment a trace; recording everything can create expense, privacy, security, and operational-noise problems.C15-R03 SLSA and SPDX can structure build and composition assertions, but neither proves fitness, absence of vulnerabilities, deployment completeness, or safe operation.C15-R15C15-R16

The practical test is retrieval. Can an authorized responder follow the relationship from a runtime symptom to a release, its inputs, the decision and evidence that allowed it to proceed, the affected assets, and the action that followed? If not, the factory has records but not yet useful traceability.

Open figure

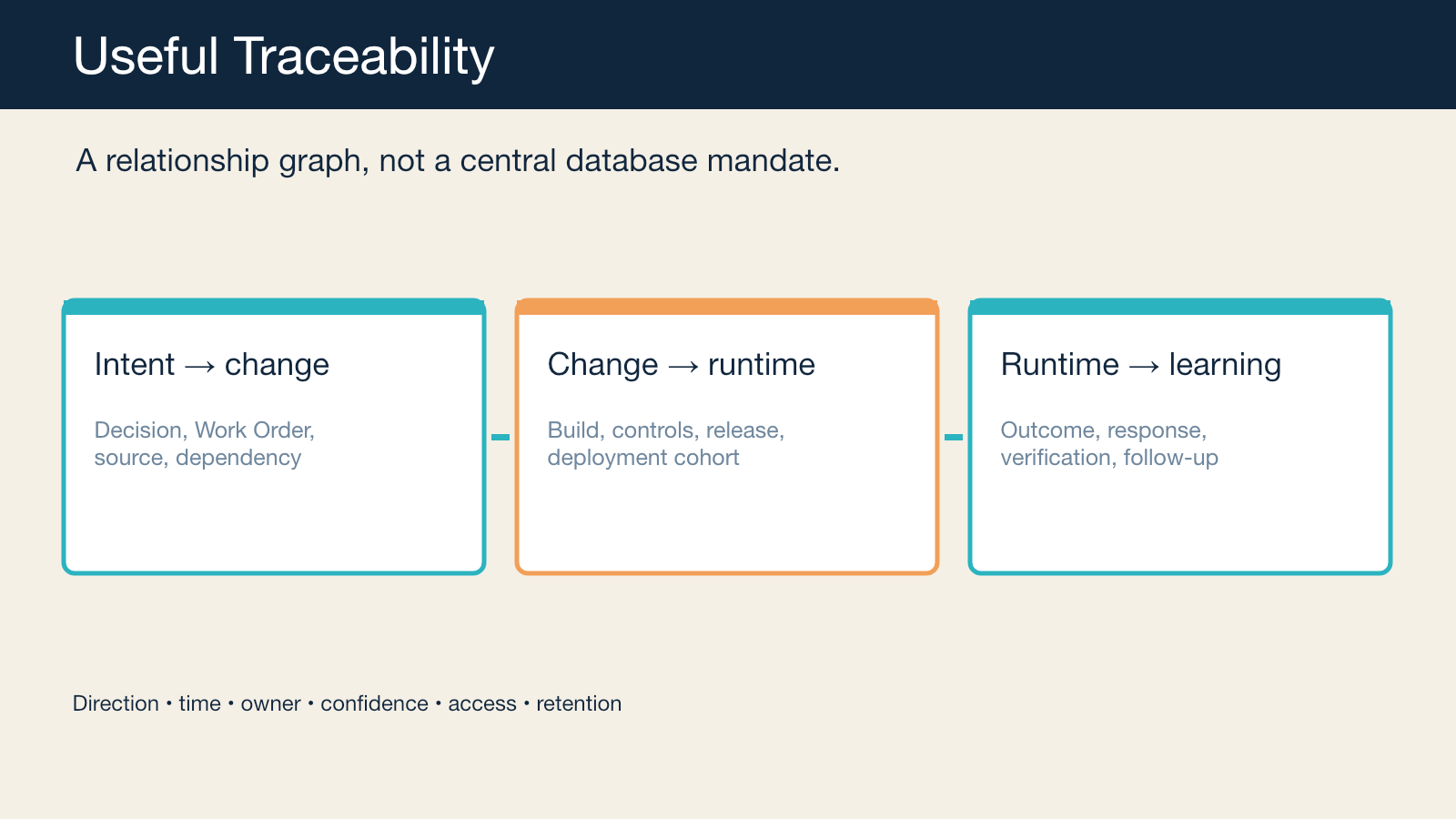

Figure F15.1 production specification: Traceability relationship graph

Figure F15.1 — Useful Traceability connects consequential intent, decisions, changes, production evidence, releases, runtime outcomes, response, recovery verification, and learning while making access, retention, and uncertainty explicit. It is an author synthesis, not a mandatory platform design.

C15.2 — Use evidence across overlapping response work

Incident response is not a neat sequence. Detection and declaration establish a current signal, scope, and accountable lead. Investigation reconstructs enough of the event to support the next decision. Containment may stop propagation while already affected assets remain unavailable. Restoration may return service before the factory can explain contributing conditions. Remediation changes a control, asset, or process. Institutional learning remains open until the change is exercised or otherwise verified.

NIST guidance calls for recording investigation actions, protecting record integrity and provenance, reconstructing event sequence and involved assets, selecting and verifying recovery actions, documenting results, and learning from incidents. NIST SP 800-184 likewise connects preparation, playbooks, testing, recovery execution, and improvement. These are practice expectations, not measured outcome claims.C15-R01C15-R02

Figure F15.2 keeps these activities on separate lanes so overlap is visible. An explanation can revise the containment boundary. A recovery action can create evidence for the explanation. A service-restored marker must not close the learning lane. The completion test for each lane is tied to a declared question and scope, with residual uncertainty recorded.

The distinction matters in the approved cases. During the Log4j response, upstream release information was insufficient to identify every deployed product, version, owner, exposure, and remediation state. Government and project records show why component and build provenance becomes operationally useful only when connected to downstream inventory and verification.C15-R09C15-R10C15-R11 The case does not establish open-source inferiority, complete ecosystem prevalence, or SBOM effectiveness.

The CrowdStrike Channel File 291 record illustrates another boundary. Public records connect content identity, validation, release, propagation, affected Windows devices, recovery guidance, and proposed corrective actions. Microsoft estimated 8.5 million affected devices, described as less than one percent of Windows machines, but did not publish a method, uncertainty interval, customer denominator, or completed-recovery denominator. Stopping further propagation and restoring already affected endpoints were different activities.C15-R05C15-R07C15-R08 The estimate must not become a general recovery statistic, and corrective-action effectiveness is not independently verified in the approved record set.

Knight Capital and Ariane 501 are narrower historical windows. They show that emitted records become useful only when interpretable, routed to authority, connected to operating limits, and followed through to corrective work. They are not ordinary service-recovery benchmarks and do not establish a general traceability effect.C15-R13C15-R14

Open figure

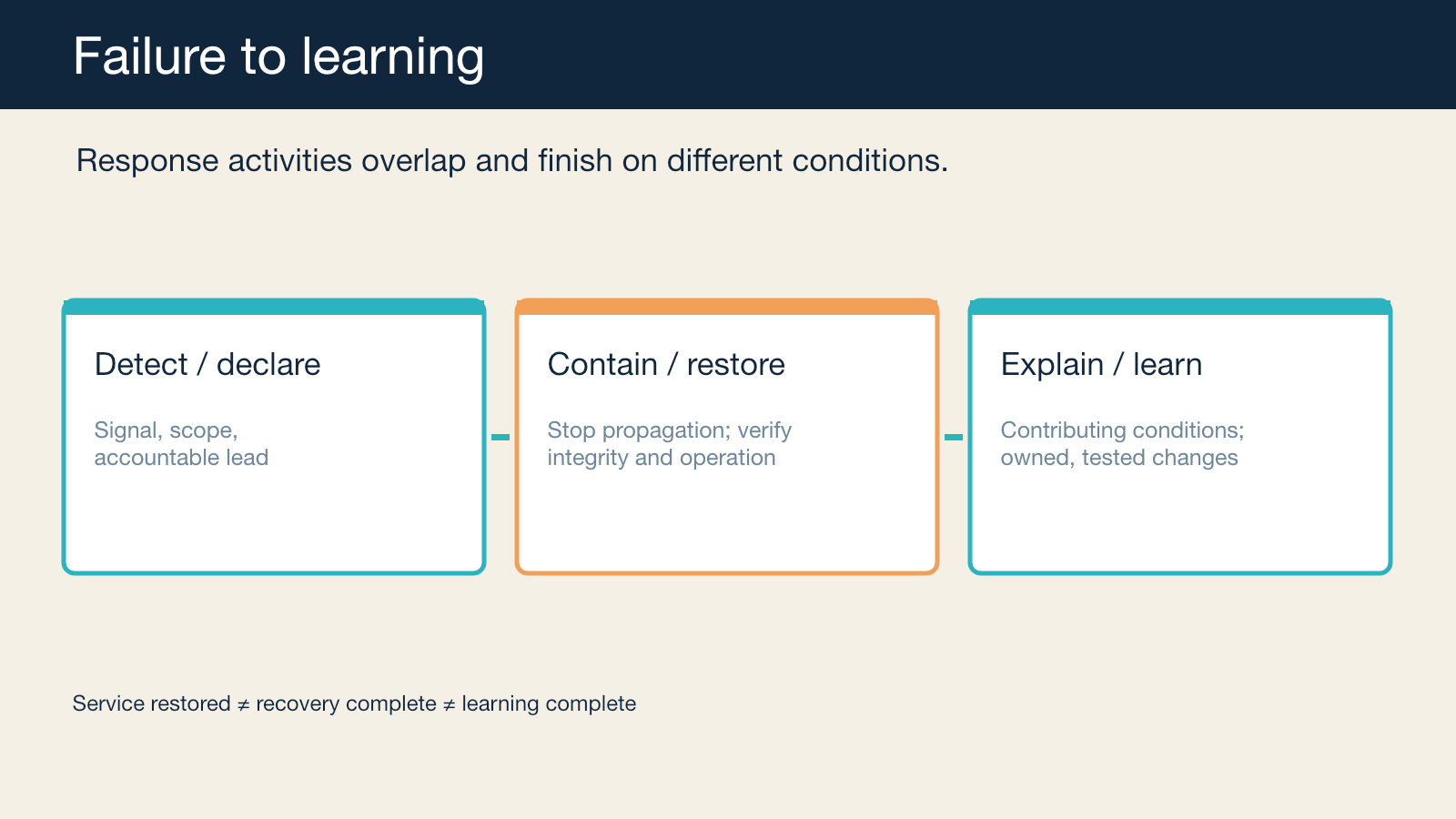

Figure F15.2 production specification: Failure-to-learning timeline

Figure F15.2 — Detection, containment, restoration, explanation, remediation, and institutional learning overlap and finish on different conditions; service restoration alone does not complete recovery or learning.

C15.3 — Make traceability proportionate and protected

The factory should begin with questions and obligations, then choose the relationships, collection mode, coverage or sampling, protection, access, retention, disposal, and retrieval tests needed to answer them. Separate correlation identifiers from sensitive business or personal content where possible. Record clock and identifier semantics. Protect integrity and provenance. Declare blind spots, supplier-held records, legacy gaps, and sampled intervals.

Privacy, worker surveillance, security exposure, storage and processing cost, and response noise are design constraints. GDPR Article 5 supplies purpose limitation, data minimization, accuracy, storage limitation, integrity and confidentiality, and accountability principles in its jurisdiction; it is not a global fixed-retention rule or legal advice.C15-R04 NIST control families similarly require tailoring rather than one implementation or one duration.C15-R12

“Record everything forever” fails this test. Unknown future value does not erase purpose, rights, attack exposure, or cost. Nor does “anonymized” automatically remove privacy risk. Access controls can reduce exposure while still requiring careful authorization, audit, and disposal. Retention should be selected for the question, risk, obligation, and jurisdiction; this chapter prescribes no universal period or sampling rate.

The same proportionality applies to evidence quality. A passing gate can be incomplete or invalid. A build attestation can be stale. A deployment inventory can omit supplier or legacy assets. A postmortem can be a selected retrospective account. Confidence and coverage therefore belong on the relationship, not only in a separate report.

The traceability test

Leaders can test a proposed design with six questions.

1. What consequential question must be answered? Name the decision, scope, urgency, and harm of being wrong.
2. Which relationship set answers it? Identify the minimum nodes and edges, including owner, time, confidence, access, and retention.
3. What is directly recorded, derived, federated, sampled, or missing? Make uncertainty explicit.
4. Who may query, change, disclose, or dispose of the evidence? Separate operational authority from investigative access.
5. How will recovery be verified? Define integrity, function, scope, and owner confirmation; availability alone is insufficient.
6. What future decision should the evidence change? Link findings to an owned, due-dated, expiring, and tested control, asset, playbook, or training change.

These questions are a decision framework, not a maturity model. They do not prescribe a central repository, a universal event schema, or a mandatory serial response process. They make the boundary inspectable enough for a factory to choose proportionate instrumentation and to say when the evidence is not good enough.
